Specification:
Item Type: Internal Resistance Tester
Material: ABS
Measurement Parameters: AC resistance, DC voltage
Basic Accuracy:
Resistance: 0.5%
Voltage: 0.5%
Measuring Range:
Resistance: 0.0001m²~200Ω
Voltage: 0.0001V~±100VDC
Signal Source:
Frequency: AC 1kHz
Current: 2mΩ/20mΩ range 50mA; 200mΩ/2Ω range 5mA; 20Ω/200Ω range 0.5mA
Range:
Resistance: 6 ranges automatic and manual
Voltage: 3 ranges automatic and manual
Test Speed: 5 times/sec
Calibration: Resistance: each range is individually manually calibrated without affecting each other
Voltage: each range is individually and manually calibrated without affecting each other
Factory Setting: save the factory information, one key can restore the factory state
Backlight: Enter the setting menu to turn off and on
Energy Saving Setting: 30 minutes delay, automatic shutdown without any operation
Scope of Application: cell phone, computer, electric vehicle and other battery maintenance, battery factory inspection and testing
Display Result: LCD display, direct reading
Power Supply: built-in lithium battery, using 5V/1A charging (for mobile phone charger)

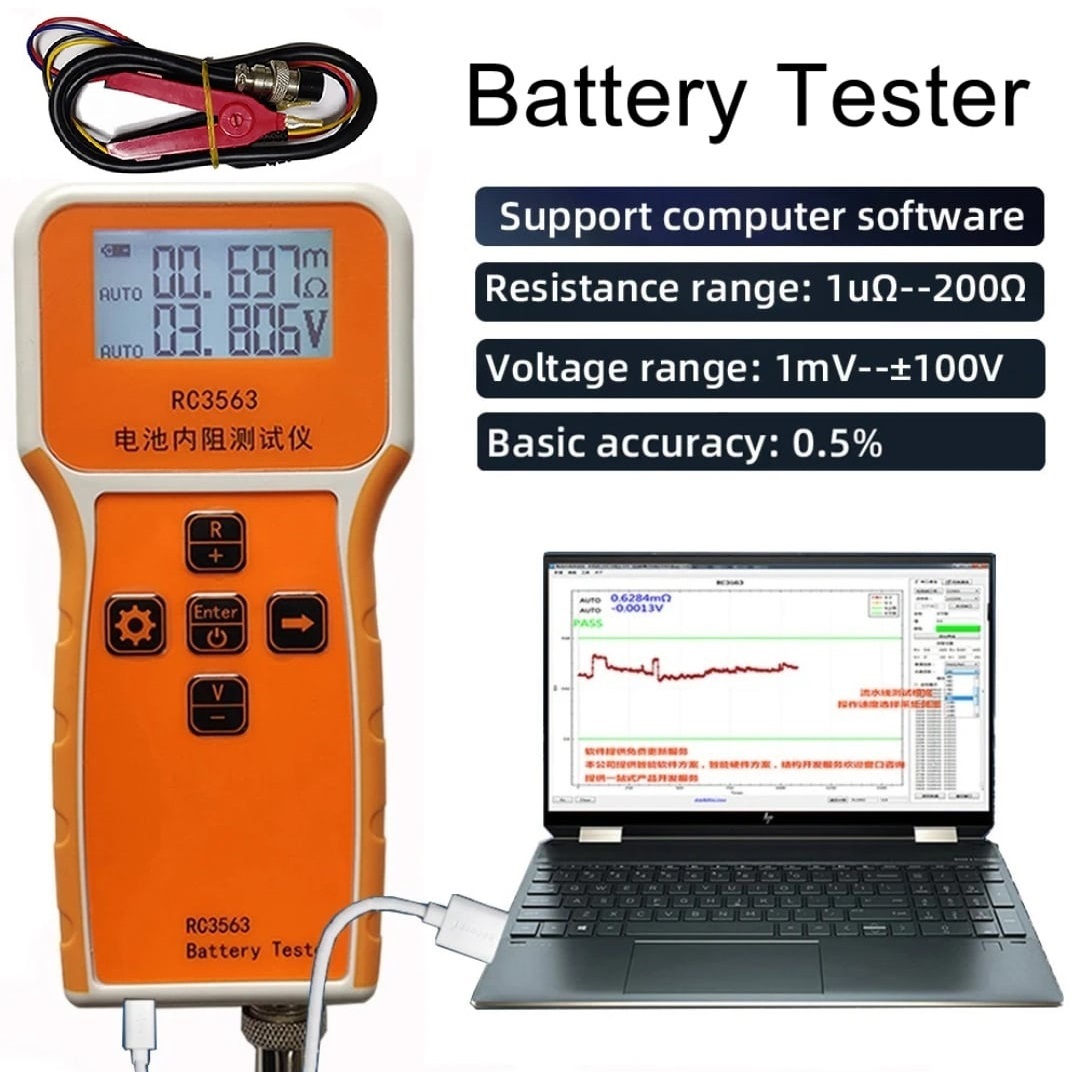

RC3563 Battery Internal Resistance Tester Internal Resistance Detector True Battery Tester, Internal resistance Meter for Lifepo4 or Lithium Ion Battery
High-Precision Handled RC3563 Internal Battery Tester Resistance Tester Trithium Lead Acid Lithium Ion Nickel Chromium LifePo4 18650 Battery 4 Wire True Cell Tester
