D09100 is a precision instrument for measuring dissolved oxygen and temperature. The built-in microcomputer processor calculates and compensates all the measurement data related to dissolved oxygen and temperature. The case of this instrument is waterproof. Dissolved oxygen meter (measurement unit): Percent saturation (%) or oxygen concentration (mg/L) The probe for dissolved oxygen is a film with a polarography sensor and a thermistor for temperature measurement and temperature compensation. The permeable membrane separates the measured solution from the sensing electrode, but allows oxygen to pass through the membrane to react, and the concentration can be measured.
Specification:
- Measuring range:
Oxygen concentration (mg/L): 0.0-40. 0 mg/L
Dissolved oxygen saturation (%): 0.0-300. 0%
Temperature: 0.1-40.0°C; 32.0-104.0°F
- Resolution:
Oxygen concentration (mg/L): 0.1 mg/L
Dissolved oxygen saturation (%): 0.1%
Temperature: 0, 1°C; 0.1°F
- Precision:
Oxygen concentration (mg/L): ±1.5% °F. S.
Dissolved oxygen saturation (%): ±1.5%F. S.
Temperature: ±0.5℃
- Calibration mode: support single-point or dual-point automatic calibration, namely zero point or automatic 100% calibration in the air
- Response time: 1<45s (fast response at 20℃)
- Temperature compensation range: automatic (0-40℃)
- Battery power: low battery warning
- Height compensation: none
- Backlight: support automatic backlight
- Shut down: automatically shut down for about 15 minutes
- Power supply mode: 3*1. 5V button battery (included)
- Use environment: 10.1-40,0℃ RH max 90%
- Dimensions and weight: 183*37*37mm (7.2*1.5*1.5in)/80g

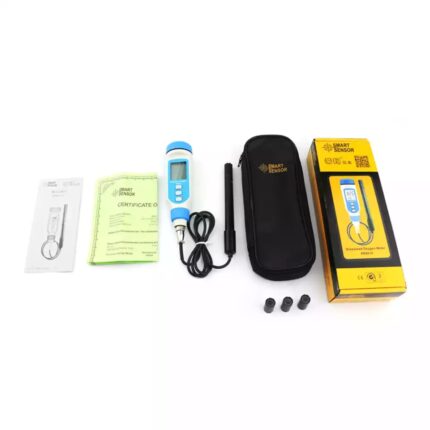

Package Included:
1 x Dissolved oxygen meter with accessories
